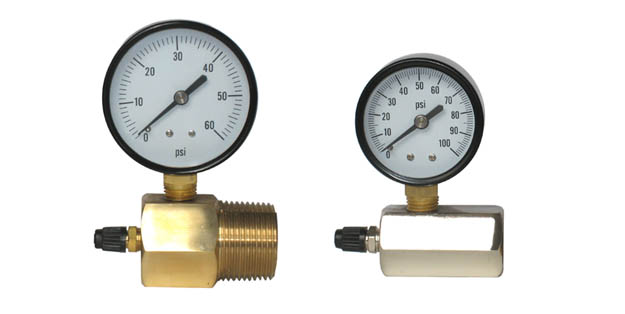

Gas test pressure gauge testing of gas and water lines.

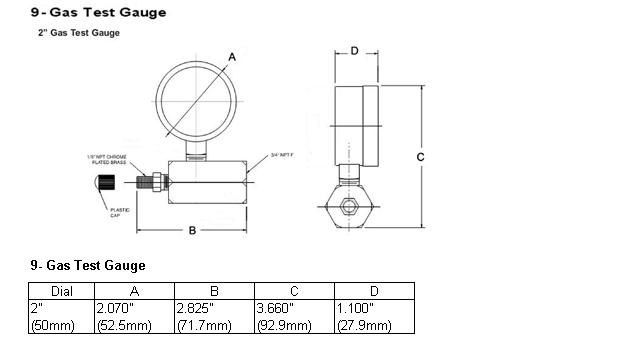

Specifications For GAS TEST GAUGE
 |
Dial | 2" (50mm), 2.5" (63mm) |
|
Case | Black Paintied Steel |
|
Lens | Acrylic |
|
Ring | Black Paintied Steel |
|
Internal | Brass |
|
Connection | 3/4" NPT |
|
Range | 30"Hg.Vacuum -- 0-2000 PSI/KPA |
|
Accuracy | ±3-2-3% |
|
A pressure gauge and a chrome plated hex steel body assembly | |
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
P11 |
30"Hg-0 |
5 |
0.2 |
|
P12 |
30"Hg-0-15 psi |
5/5 |
0.5/0.2 |
|
P13 |
30"Hg-0-30 psi |
10/5 |
1/0.5 |
|
P14 |
30"Hg-0-60 psi |
10/10 |
1/1 |
|
P15 |
30"Hg-0-100 psi |
30/10 |
2/1 |
|
P16 |
30"Hg-0-150 psi |
30/20 |
5/2 |
|
P17 |
30"Hg-0-300 psi |
30/50 |
5/2 |
|
P18 |
0-15 psi |
3 |
0.1 |
|
P19 |
0-30 psi |
5 |
0.2 |
|
P20 |
0-60 psi |
10 |
0.5 |
|
P21 |
0-100 psi |
10 |
1 |
|
P22 |
0-160 psi |
20 |
1 |
|
P23 |
0-200 psi |
20 |
2 |
|
P24 |
0-300 psi |
50 |
2 |
|
P25 |
0-400 psi |
50 |
5 |
|
P26 |
0-600 psi |
50 |
5 |
|
P27 |
0-1000 psi |
100 |
10 |
|
P28 |
0-1500 psi |
300 |
10 |
|
P29 |
0-2000 psi |
200 |
20 |
|
P30 |
0-3000 psi |
300 |
20 |
|
P31 |
0-5000 psi |
500 |
50 |
|
P32 |
0-10000 psi |
1000 |
100 |
|
P33 |
0-15000 psi |
2000 |
100 |
|
P34 |
0-20000 psi |
2000 |
200 |
|
KPA Range |
|||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
|
K11 |
-100-0 kpa |
10 |
1 |
|
K12 |
-100-0-100 kpa |
20 |
2 |
|
K13 |
-100-0-200 kpa |
50 |
2 |
|
K14 |
-100-0-400 kpa |
50 |
5 |
|
K15 |
-100-0-600 kpa |
100 |
5 |
|
K16 |
-100-0-1000 kpa |
100 |
10 |
|
K17 |
-100-0-2000 kpa |
200 |
20 |
|
K18 |
0-100 kpa |
10 |
1 |
|
K19 |
0-200 kpa |
20 |
2 |
|
K20 |
0-400 kpa |
50 |
5 |
|
K21 |
0-700 kpa |
100 |
5 |
|
K22 |
0-1200 kpa |
200 |
10 |
|
K23 |
0-1500 kpa |
300 |
10 |
|
K24 |
0-2000 kpa |
200 |
20 |
|
K25 |
0-3000 kpa |
300 |
20 |
|
K26 |
0-4000 kpa |
500 |
50 |
|
K27 |
0-7000 kpa |
1000 |
50 |
|
K28 |
0-10000 kpa |
1000 |
100 |
|
K29 |
0-14000 kpa |
2000 |
100 |
|
K30 |
0-20000 kpa |
2000 |
200 |
|
K31 |
0-35000 kpa |
5000 |
250 |
|
K32 |
0-60000 kpa |
10000 |
500 |
|
K33 |
0-100000 kpa |
20000 |
1000 |
|
K34 |
0-140000 kpa |
20000 |
1000 |
|
KG/CM2 Range |
|||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
|
G11 |
76cm Hg-0 |
10 |
0.5 |
|
G12 |
76cm Hg-0-1 kg/cm2 |
20/0.2 |
1/0.2 |
|
G13 |
76cm Hg-0-2 kg/cm2 |
20/0.5 |
2/0.2 |
|
G14 |
76cm Hg-0-4 kg/cm2 |
25/0.5 |
5/0.5 |
|
G15 |
76cm Hg-0-7 kg/cm2 |
76/1 |
5/0.1 |
|
G16 |
76cm Hg-0-10 kg/cm2 |
76/1 |
15/0.1 |
|
G17 |
76cm Hg-0-21 kg/cm2 |
76/2 |
1/0.2 |
|
G18 |
0-1 kg/cm2 |
0.1 |
0.01 |
|
G19 |
0-2 kg/cm2 |
0.2 |
0.02 |
|
G20 |
0-4.2 kg/cm2 |
0.5 |
0.05 |
|
G21 |
0-7 kg/cm2 |
1 |
0.05 |
|
G22 |
0-11 kg/cm2 |
1 |
0.1 |
|
G23 |
0-14 kg/cm2 |
2 |
0.1 |
|
G24 |
0-21 kg/cm2 |
3 |
0.2 |
|
G25 |
0-28 kg/cm2 |
4 |
0.2 |
|
G26 |
0-42 kg/cm2 |
6 |
0.5 |
|
G27 |
0-70 kg/cm2 |
10 |
0.5 |
|
G28 |
0-100 kg/cm2 |
10 |
1 |
|
G29 |
0-140 kg/cm2 |
20 |
1 |
|
G30 |
0-210 kg/cm2 |
30 |
2 |
|
G31 |
0-350 kg/cm2 |
50 |
2 |
|
G32 |
0-700 kg/cm2 |
100 |
10 |
|
G33 |
0-1000 kg/cm2 |
100 |
10 |
|
G34 |
0-1400 kg/cm2 |
200 |
20 |
