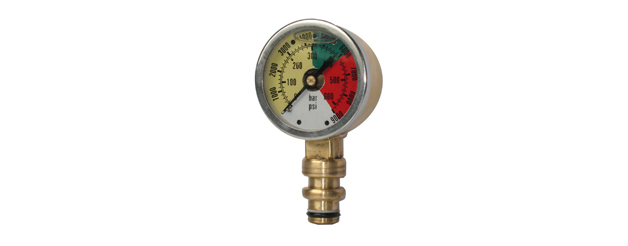

Hydraulic shoring and irrigation equipment commonly used in long wall mining.

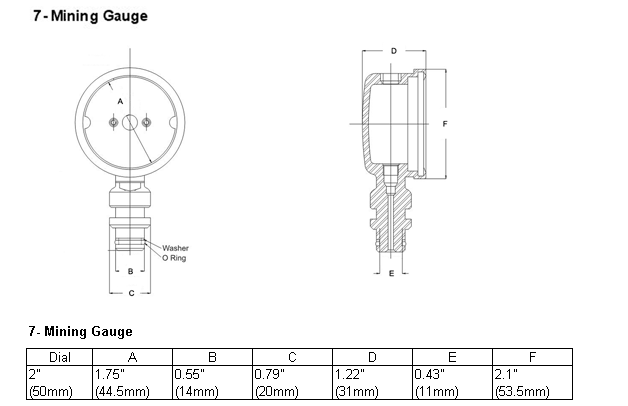

Specifications For MINING GAUGE
Dial
2" (50mm)
Case
Brass case and socket one piece forged
Lens
PC
Liquid Fill
Glycerin
Ring
Stainless steel
Internal
Brass
Connection
3/8"Steck-O quick connection
Range
0-9000 PSI / BAR
Accuracy
±3-2-3%
Order Codes
|
PSI Range |
BAR Range |
||||||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
Range Code |
Specific Range (bar) |
Figure Internals |
Minor Divisions |
|
P11 |
0-9000 |
|
|
B11 |
0-600 |
|
|
