THERMOMETER
date sheet HVAC V-Line Thermometer

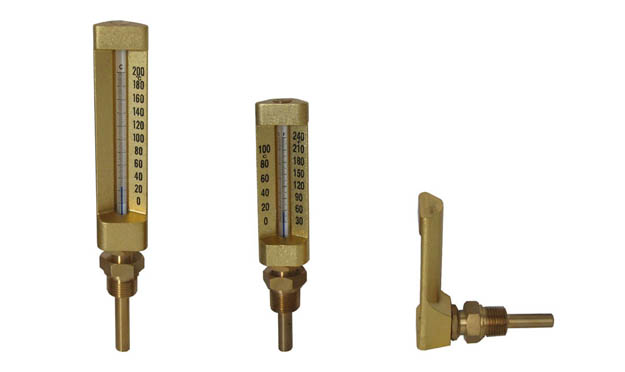

HVAC V-LINE THERMOMETER provide 4.5" (110mm), 6" (150mm) or 8" (200mm) scales. Offers ruggedness and durability in harsh industrial environments. Used in heating, plumbing, air conditioning and ventilation applications.



Specifications


 Dial  4.5" (110mm), 6" (150mm), 8" (200mm)
 Case  Aluminum, anodized gold
 Liquid Filling  Organic Liquid (Red / Blue)
 Stem  Brass / st/st
 Swivel Nut  Brass / st/st
 Connection  1/2" BSP / NPT
 Range  -40-110F/C, 20/180F/C, 30-240F/C, 30-300F/C, 50-400F/C
 Accuracy  ±2%







Order Codes



F Range

C Range

Range Code

Specific Range (F)

Range Code

Specific Range (C)

F11

-40-110

C11

-40-40

F12

20-180

C12

-5-80

F13

30-240

C13

0-115

F14

30-300

C14

0-150

F15

50-400

C15

10-200
