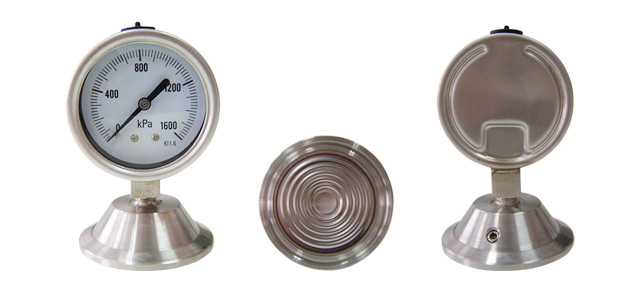

Demanding pharmaceutical applications requiring strict sanitary instrumentation features. This gauge is for special requirements in the dairy, food processing, pharmaceutical and chemical industries.
Specifications For SANITARY GAUGE
Dial
2.5" (63mm), 4" (100mm)
Case
AISI 304 Stainless Steel
Diaphragm
AISI 316 stainless Steel Diaphragm & 1.5" (40mm) and 2" (50mm) Tri-clamp
Filling
Food Grade Glycerin Filled
Internal
Stainless Steel
Connection
1/2" or 1/4" NPT Stainless Steel, Welded
Range
30"Hg.Vac./kpa -- 0-600 Psi/Kpa
Accuracy
2.5" (63mm) 1.6%, 4" (100mm) 1.0%
