THERMOMETER

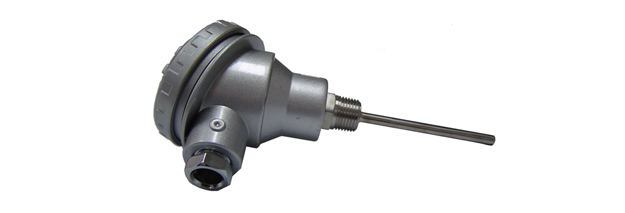

date sheet RTD / Sanitary RTD (PT 100)

General industrial and HVAC applications, used in petrochemical, water process, liquid oxygen and sanitary RTD used in food, dairy, beverage, pharmaceutical, etc.


Specifications

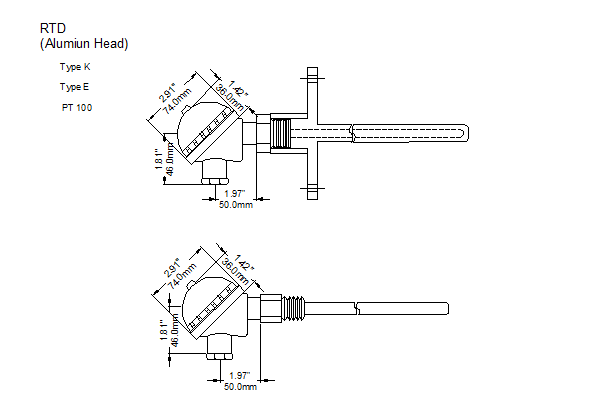

 Head  Cast aluminum or stainless steel, NEMA 4 rated
 Element  Platinum, 100 Ohm
 Temperature Range  -58F to 390F (-50C to 200C)
 Pressure Rating  500 psi (3,447 kPa maximum)
 Connection  1/2" NPT, 316 Stainless Steel
 Accuracy  +/-0.12% at 0C, 32F
 Probe  316 Stainless Steel
 Option  Temperature Transmitter 4-20mA output
