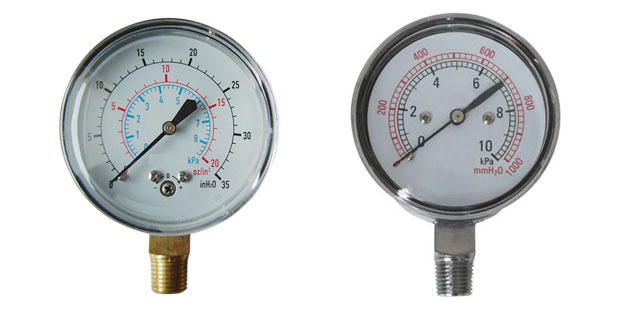

Low pressure gauge suitable for measuring gaseous media, used to measure natural gas pressure as well air flow indication and leak detection, vacuum pumps, air compressors, air filters, vacuum ovens, suction regulators and respirators. The inner test system of low pressure gauge is Composition by capsule which we can supply brass or stainless steel for your choice.

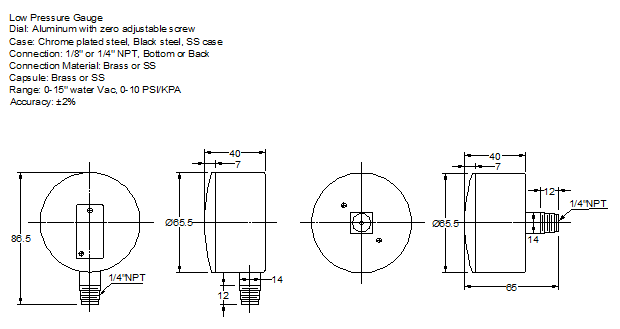

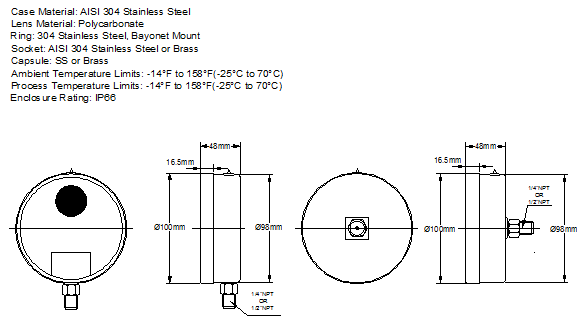

Specifications For LOW PRESSURE GAUGE
 |
Dial | 2.5" (63mm), 4" (100mm) |
|
Case | Black Paintied Steel / st/st |
|
Lens | PC / Glass |
|
Ring | Steel |
|
Internal | Brass / Stainless Steel |
|
Diaphragm Element: | Stainless steel or Phosphor bronze |
|
Connection | 1/4" NPT |
|
Range | 0-15" Water Vac -- 0-10 PSI/KPA |
|
Accuracy | ±3-2-3%, ±1.0% |
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
V11 |
0 to 15 psi |
3 |
0.1 |
|
V12 |
0 to 30 psi |
5 |
0.2 |
|
V13 |
0 to 60 psi |
10 |
0.5 |
|
V14 |
0 to 100 psi |
10 |
1 |
|
V15 |
0 to 200 psi |
20 |
2 |
|
KPA Range |
|||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
|
O11 |
0 to 100 kpa |
10 |
1 |
|
O12 |
0 to 200 kpa |
20 |
2 |
|
O13 |
0 to 400 kpa |
50 |
5 |
|
O14 |
0 to 700 kpa |
100 |
5 |
|
O15 |
0 to 1500 kpa |
300 |
10 |
|
KG/CM2 Range |
|||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
|
11 |
0 to 1 kg/cm2 |
0.1 |
0.01 |
|
12 |
0 to 2 kg/cm2 |
0.2 |
0.02 |
|
13 |
0 to 4.2 kg/cm2 |
0.5 |
0.05 |
|
14 |
0 to 7 kg/cm2 |
1 |
0.05 |
|
15 |
0 to 14 kg/cm2 |
2 |
0.1 |
