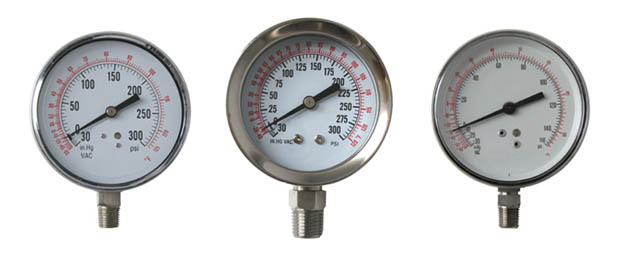

Used to measure pressure and temperature of ammonia systems.
Specifications For AMMONIA GAUGE
![]() |
Dial | 2.5" (50mm), 4" (100mm), 6" (160mm) |
![]() |
Case | Stainless steel / Black Paintied Steel |
![]() |
Lens | Polycarbonate |
![]() |
Ring | Stainless steel / Black Paintied Steel |
![]() |
Internal | Stainless steel / Painted steel |
![]() |
Connection | 1/4" NPT |
![]() |
Range | 30-0-150 PSI/F, 30-0-300 PSI/F |
![]() |
Accuracy | ±1.0%, ±1.5%, ±3-2-3% |
Order Codes
PSI Range |
||
Range Code |
Dial Size |
Specific Range (psi) |
P11 |
2.5" (63mm) Bottom |
30"-0-150 PSI /F |
P12 |
30"-0-300 PSI /F |
|
P13 |
30"-0-150 PSI /C |
|
P14 |
30"-0-300 PSI /C |
|
P15 |
2.5" (63mm) Back (CB) |
30"-0-150 PSI /F |
P16 |
30"-0-300 PSI /F |
|
P17 |
30"-0-150 PSI /C |
|
P18 |
30"-0-300 PSI /C |
|
P19 |
4" (100mm) Bottom |
30"-0-150 PSI /F |
P20 |
30"-0-300 PSI /F |
|
P21 |
30"-0-150 PSI /C |
|
P22 |
30"-0-300 PSI /C |
|
P23 |
4" (100mm) Back (CB) |
30"-0-150 PSI /F |
P24 |
30"-0-300 PSI /F |
|
P25 |
30"-0-150 PSI /C |
|
P26 |
30"-0-300 PSI /C |
|
P27 |
4" (100mm) Back (LB) |
30"-0-150 PSI /F |
P28 |
30"-0-300 PSI /F |
|
P29 |
30"-0-150 PSI /C |
|
P30 |
30"-0-300 PSI /C |
