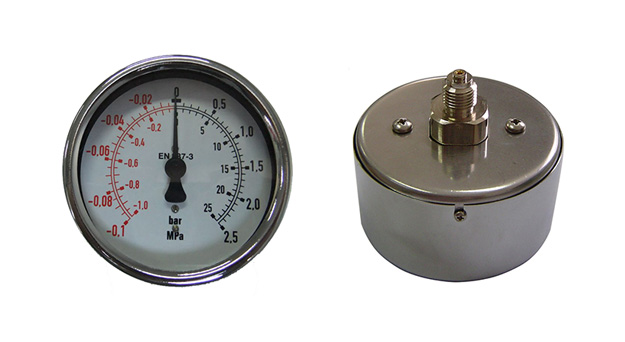

Diaphragm pressure gauge applications requiring strict sanitary instrumentation features. This gauge is for special requirements in the dairy, food processing, pharmaceutical and chemical industries

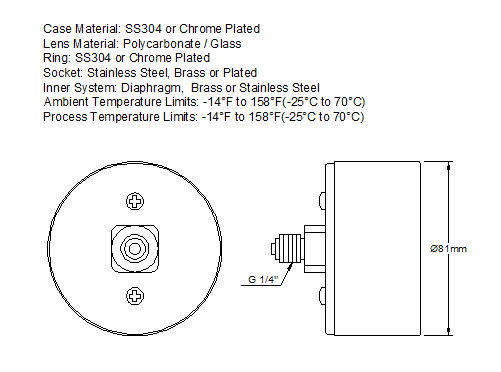

Specifications For DIAPHRAGM PRESSURE GAUGE
Dial
3'(80mm)
Case
AISI 304 Stainless Steel or chrome plated
Diaphragm
AISI 316 stainless Steel or brass
Internal
Stainless Steel or Brass
Connection
1/4'NPT, 3/8' NPT or required
Range
30'Hg.Vac./kpa -- 0-6000 Psi/Kpa
Accuracy
1.0%
