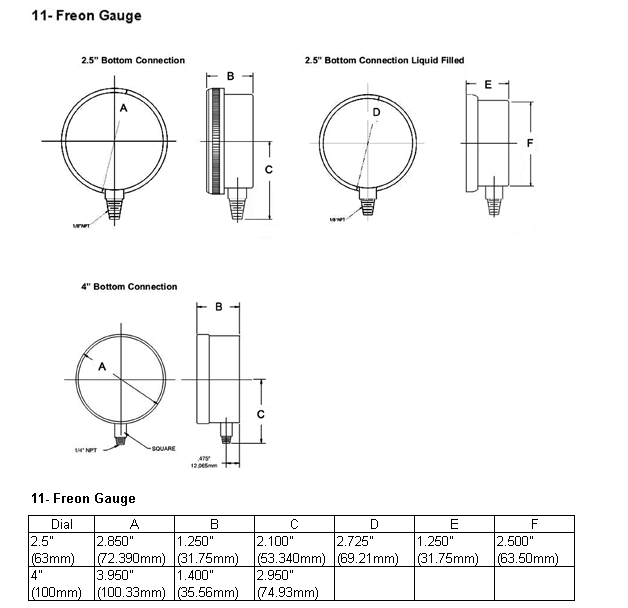

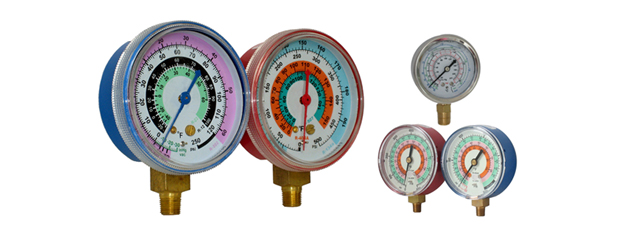

Specifications For FREON GAUGE
![]() |
Dial | 2.5"(63mm),4"(100mm),6"(150mm) |
![]() |
Case | Painted Steel / Red & Blue Plastic |
![]() |
Lens | Glass / Acrylic / Polycarbonate |
![]() |
Ring | st/st/crimped / Polished brass / Painted Steel |
![]() |
Internal | Brass |
![]() |
Connection | 1/4" or1/8" NPT |
![]() |
Range | 30"-0-120 PSI(Retard 250),30"-0-300 PSI,0-500 PSI |
![]() |
Accuracy | ±1.0% or ±2.0% |
Order Codes
PSI Range |
||
Range Code |
Dial Size |
Specific Range (psi) |
P11 |
2.5"(63mm) Bottom |
30"-0-120 PSI (retard 250) |
P12 |
30"-0-300 PSI |
|
P13 |
0-500 PSI |
|
P15 |
2.5"(63mm) Back |
30"-0-120 PSI (retard 250) |
P16 |
30"-0-300 PSI |
|
P17 |
0-500 PSI |
|
P18 |
4"(100mm) Bottom |
30"-0-120 PSI (retard 250) |
P19 |
30"-0-300 PSI |
|
P20 |
0-500 PSI |
|
P21 |
4"(100mm) Back |
30"-0-120 PSI (retard 250) |
P22 |
30"-0-300 PSI |
|
P23 |
0-500 PSI |
