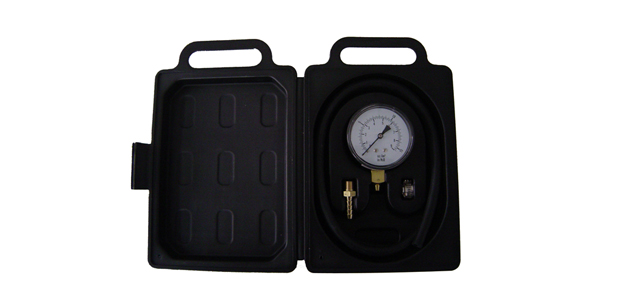

For checking low pressure such as on natural gas equipment. Low pressure gauge built into ABS plastic case for easy in use and durability.
Specifications For LOW PRESSURE TEST KIT
| Gauge | ||
 |
Dial | 2.5"(63mm) |
|
Case | Black Steel |
|
Diaphragm Element | Phosphor bronze |
|
Lens | Polycarbonate |
|
Connection | Brass Hose Barb (1/4") |
|
Ambient Temperature | -40F to 150F (-40C to 65C) |
|
Range | 0-15" water/oz/in2; 0-35" water/in2; 0-100" water/in2 |
|
Accuracy | +/- 2.5% |
| Case | ||
|
Tube Nipple | Rubber: ID x 0.295" (7.5mm) OD x 0.512" (13mm) |
|

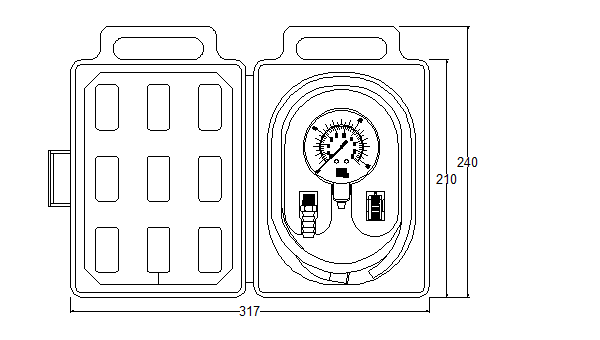

Case | ABS Plastic: 6.181" x 9.449" (157mm x 240mm) |
|
Accessories | Rubber tube: 3.66" (93mm) length; 0.256" (6.5mm) ID x 0.374" (9.5mm) OD. Brass fitting and fastener. |
