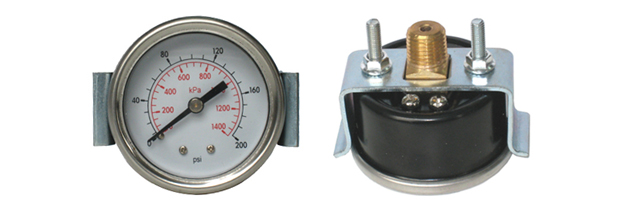

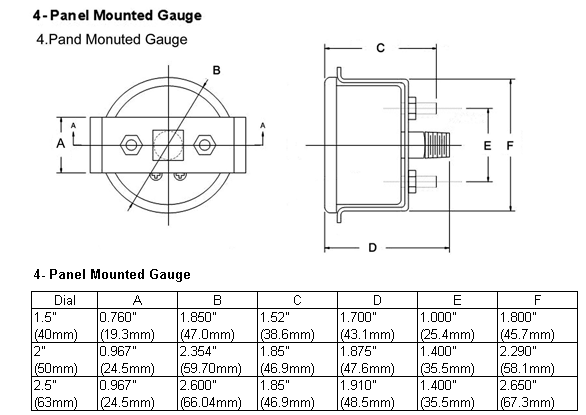

This is a pressure gauge with an U-clamp that can make the pressure gauge mounted on the panel.
Specifications For PANEL MOUNTED GAUGE
Dial
1.5" (40mm), 2" (50mm), 2.5" (63mm)
Case
Black Plated Steel
Lens
Plastic
Ring
Stainless steel
Internal
Brass
Connection
Brass, 1/8" or 1/4" NPT
Parts
U clamp
Range
30"Hg.Vac./kpa -- 0-600 Psi/Kpa
Accuracy
±3-2-3%
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
P11 |
30"Hg to 0 |
5 |
0.2 |
|
P12 |
0 to 15 psi |
3 |
0.1 |
|
P13 |
0 to 30 psi |
5 |
0.2 |
|
P14 |
0 to 60 psi |
10 |
0.5 |
|
P15 |
0 to 100 psi |
10 |
1 |
|
P16 |
0 to 160 psi |
20 |
1 |
|
P17 |
0 to 200 psi |
20 |
2 |
|
P18 |
0 to 300 psi |
50 |
2 |
|
KPA Range |
|||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
|
K11 |
-100 to 0 kpa |
10 |
1 |
|
K12 |
0 to 100 kpa |
10 |
1 |
|
K13 |
0 to 200 kpa |
20 |
2 |
|
K14 |
0 to 400 kpa |
50 |
5 |
|
K15 |
0 to 700 kpa |
100 |
5 |
|
K16 |
0 to 1200 kpa |
200 |
10 |
|
K17 |
0 to 1500 kpa |
300 |
10 |
|
K18 |
0 to 2000 kpa |
200 |
20 |
|
KG/CM2 Range |
|||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
|
G11 |
76cm Hg to 0 |
10 |
0.5 |
|
G12 |
0 to 1 kg/cm2 |
0.1 |
0.01 |
|
G13 |
0 to 2 kg/cm2 |
0.2 |
0.02 |
|
G14 |
0 to 4.2 kg/cm2 |
0.5 |
0.05 |
|
G15 |
0 to 7 kg/cm2 |
1 |
0.05 |
|
G16 |
0 to 11 kg/cm2 |
1 |
0.1 |
|
G17 |
0 to 14 kg/cm2 |
2 |
0.1 |
|
G18 |
0 to 21 kg/cm2 |
3 |
0.2 |
