Measuring Gases for, AIR, or Water Equipment and Processes When the require Oils A Panel Mounted gauge. There IS ON TWO Quick Hooks The Case of both round and have have Square Side and Plastic Cases for Choice.
Specifications For PANEL MOUNTED PRESSURE GAUGE

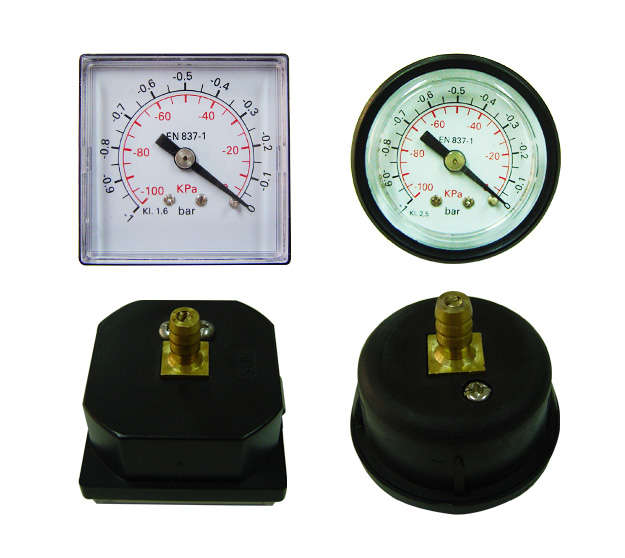

Panel Mounted Gauge (Plastic Case)
Dial
1.5" (40mm)
Case
Black Plastic
Len
Acrylic
Part
Two Automatic Coupling on Both of the Case Side
Connection
1/8"NPT, Quick Fitting or required
Ranges
30"Hg.Vac./kpa -- 0-600 Psi/Kpa
Accuracy
Round Case 3,2,3%; Square Case 1.6%
