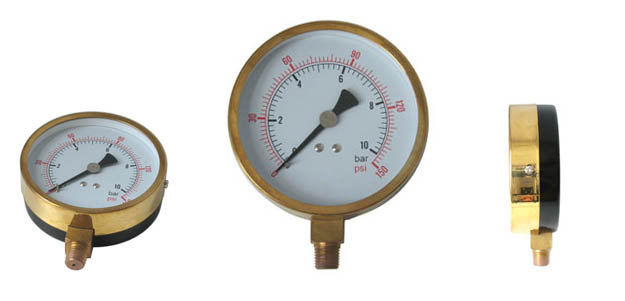

Air pressure gauge, water pressure gauge and gas pressure gauge are used on air, steam, oil, fresh and salt water, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM
Specifications For AIR PRESSURE GAUGE

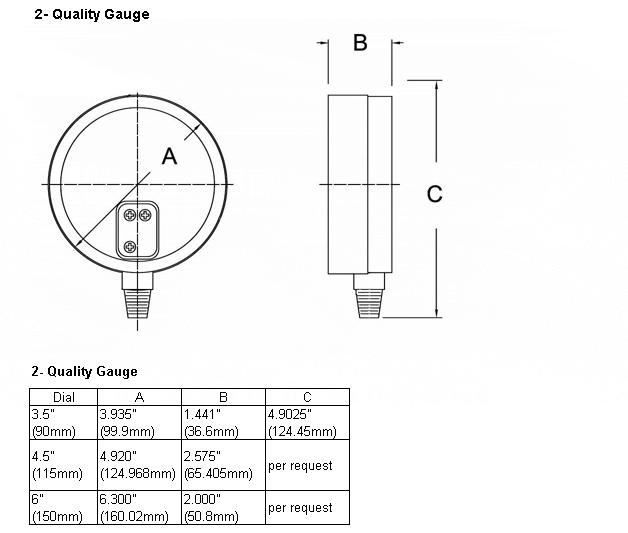

Dial
1.5" (40mm), 2" (50mm), 2.5" (63mm), 3.5" (90mm), 4.5" (115mm), 6" (150mm)
Case
Black Plated Steel/Black Plated Alu.
Lens
Glass or Acrylic Plastic
Ring
Brass or stainless steel
Internal
Brass or stainless steel
Connection
Brass or stainless steel, 1/2", 1/4" or 1/8" NPT
Range
30"Hg.Vac./kpa -- 0-5000 Psi/Kpa
Accuracy
±1% or ±2.5%
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
P11 |
30"Hg to 0 |
5 |
0.2 |
|
P12 |
30"Hg to 15 psi |
5/5 |
0.5/0.2 |
|
P13 |
30"Hg to 30 psi |
10/5 |
1/0.5 |
|
P14 |
30"Hg to 60 psi |
10/10 |
1/1 |
|
P15 |
30"Hg to 100 psi |
30/10 |
2/1 |
|
P16 |
30"Hg to 150 psi |
30/20 |
5/2 |
|
P17 |
30"Hg to 300 psi |
30/50 |
5/2 |
|
P18 |
0 to 15 psi |
3 |
0.1 |
|
P19 |
0 to 30 psi |
5 |
0.2 |
|
P20 |
0 to 60 psi |
10 |
0.5 |
|
P21 |
0 to 100 psi |
10 |
1 |
|
P22 |
0 to 160 psi |
20 |
1 |
|
P23 |
0 to 200 psi |
20 |
2 |
|
P24 |
0 to 300 psi |
50 |
2 |
|
P25 |
0 to 600 psi |
50 |
5 |
|
P26 |
0 to 1000 psi |
100 |
10 |
|
P27 |
0 to 3000 psi |
300 |
20 |
|
P28 |
0 to 5000 psi |
500 |
50 |
|
KPA Range |
|||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
|
K11 |
-100 to 0 kpa |
10 |
1 |
|
K12 |
-100 to 100 kpa |
20 |
2 |
|
K13 |
-100 to 200 kpa |
50 |
2 |
|
K14 |
-100 to 400 kpa |
50 |
5 |
|
K15 |
-100 to 600 kpa |
100 |
5 |
|
K16 |
-100 to 1000 kpa |
100 |
10 |
|
K17 |
-100 to 2000 kpa |
200 |
20 |
|
K18 |
0 to 100 kpa |
10 |
1 |
|
K19 |
0 to 200 kpa |
20 |
2 |
|
K20 |
0 to 400 kpa |
50 |
5 |
|
K21 |
0 to 700 kpa |
100 |
5 |
|
K22 |
0 to 1200 kpa |
200 |
10 |
|
K23 |
0 to 1500 kpa |
300 |
10 |
|
K24 |
0 to 2000 kpa |
200 |
20 |
|
K25 |
0 to 4000 kpa |
500 |
50 |
|
K26 |
0 to 7000 kpa |
1000 |
50 |
|
K27 |
0 to 20000 kpa |
2000 |
200 |
|
K28 |
0 to 35000 kpa |
5000 |
250 |
|
KG/CM2 Range |
|||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
|
G11 |
76cm Hg to 0 |
10 |
0.5 |
|
G12 |
76cm Hg to 1 kg/cm2 |
20/0.2 |
1/0.2 |
|
G13 |
76cm Hg to 2 kg/cm2 |
20/0.5 |
2/0.2 |
|
G14 |
76cm Hg to 4 kg/cm2 |
25/0.5 |
5/0.5 |
|
G15 |
76cm Hg to 7 kg/cm2 |
76/1 |
5/0.1 |
|
G16 |
76cm Hg to 10 kg/cm2 |
76/1 |
15/0.1 |
|
G17 |
76cm Hg to 21 kg/cm2 |
76/2 |
1/0.2 |
|
G18 |
0 to 1 kg/cm2 |
0.1 |
0.01 |
|
G19 |
0 to 2 kg/cm2 |
0.2 |
0.02 |
|
G20 |
0 to 4.2 kg/cm2 |
0.5 |
0.05 |
|
G21 |
0 to 7 kg/cm2 |
1 |
0.05 |
|
G22 |
0 to 11 kg/cm2 |
1 |
0.1 |
|
G23 |
0 to 14 kg/cm2 |
2 |
0.1 |
|
G24 |
0 to 21 kg/cm2 |
3 |
0.2 |
|
G25 |
0 to 42 kg/cm2 |
6 |
0.5 |
|
G26 |
0 to 70 kg/cm2 |
10 |
0.5 |
|
G27 |
0 to 210 kg/cm2 |
30 |
2 |
|
G28 |
0 to 350 kg/cm2 |
50 |
2 |
