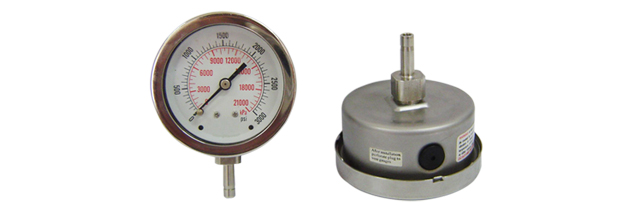

date sheet Tube Stub Gauge - Buy it in Shanghai, China

Tube Stub Gauge specifically designed to be utilized with tube fitting applications, easy for installation.

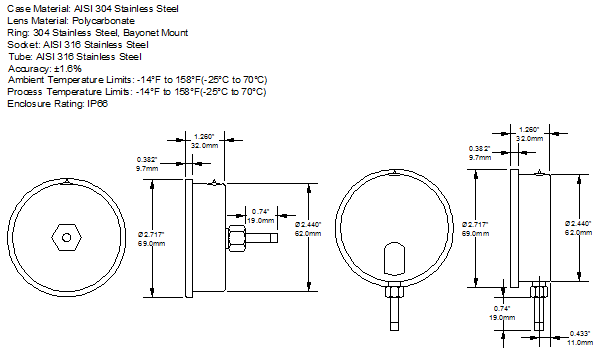

Specifications For TUBE STUB GAUGE

 Dial  2.5"(63mm)
 Case  304 stainless steel
 Ring  304 stainless steel
 Lens  Polycarbonate
 Connection  1/4" Tube stub, 316L stainless steel
 Fill Fluid  Glycerin
 Ambient/Process Temperature  -40F to 150F (-40C to 65C) dry, -4F to 150F (-20C to 65C) filled
 Accuracy  +/- 1.6%
