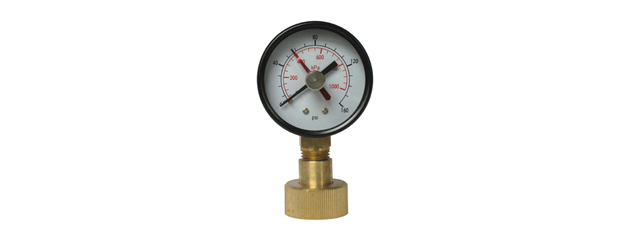

Water Test Gauge is used for pressure testing of gas and water lines.
Specifications For WATER TEST GAUGE
Dial
2" (50mm), 2.5" (63mm)
Case
Black Paintied Steel
Lens
Acrylic
Ring
Black Paintied Steel
Internal
Brass
Connection
Top connection 3/4" female swivel hose
Range
30"Hg.Vacuum -- 0-2000 PSI/KPA
Accuracy
±3-2-3%
A maximum pointer available on water test gauge
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
P11 |
0 to 15 psi |
3 |
0.1 |
|
P12 |
0 to 30 psi |
5 |
0.2 |
|
P13 |
0 to 60 psi |
10 |
0.5 |
|
P14 |
0 to 100 psi |
10 |
1 |
|
P15 |
0 to 160 psi |
20 |
1 |
|
P16 |
0 to 300 psi |
50 |
2 |
|
KPA Range |
|||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
|
K11 |
0 to 100 kpa |
10 |
1 |
|
K12 |
0 to 200 kpa |
20 |
2 |
|
K13 |
0 to 400 kpa |
50 |
5 |
|
K14 |
0 to 700 kpa |
100 |
5 |
|
K15 |
0 to 1200 kpa |
200 |
10 |
|
K16 |
0 to 2000 kpa |
200 |
20 |
|
KG/CM2 Range |
|||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
|
G11 |
0 to 1 kg/cm2 |
0.1 |
0.01 |
|
G12 |
0 to 2 kg/cm2 |
0.2 |
0.02 |
|
G13 |
0 to 4.2 kg/cm2 |
0.5 |
0.05 |
|
G14 |
0 to 7 kg/cm2 |
1 |
0.05 |
|
G15 |
0 to 11 kg/cm2 |
1 |
0.1 |
|
G16 |
0 to 21 kg/cm2 |
3 |
0.2 |
