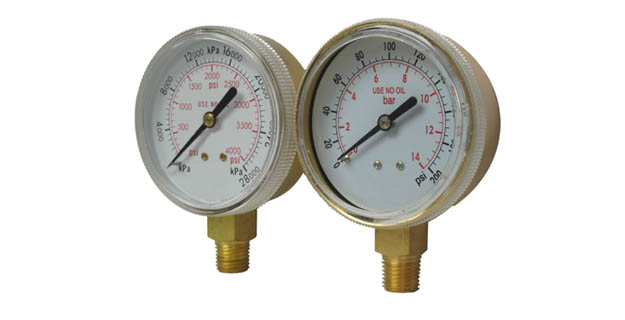

Welding gauge is used for welding tank regulators or manifolds, beverage dispensing regulators and other pressurized tanks.
Specifications For WELDING GAUGE
 |
Dial | 2" (50mm), 2.5" (63mm) |
|
Case | Polished Brass |
|
Lens | Plexiglass |
|
Socket | Brass |
|
Internal | Brass |
|
Connection | 1/4" NPT |
|
Range | 0-30 PSI -- 0-4000 PSI |
|
Accuracy | ±3-2-3% |
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
P19 |
0-30 psi |
5 |
0.2 |
|
P20 |
0-100 psi |
10 |
1 |
|
P21 |
0-200 psi |
20 |
2 |
|
P22 |
0-400 psi |
50 |
5 |
|
P23 |
0-5000 psi |
500 |
50 |
