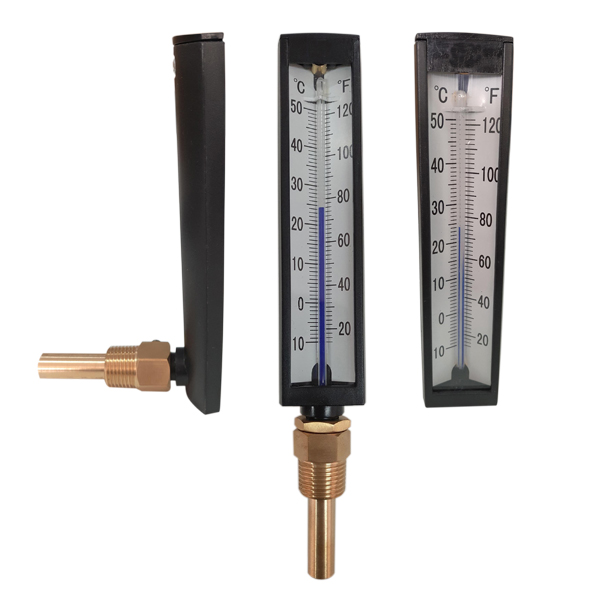

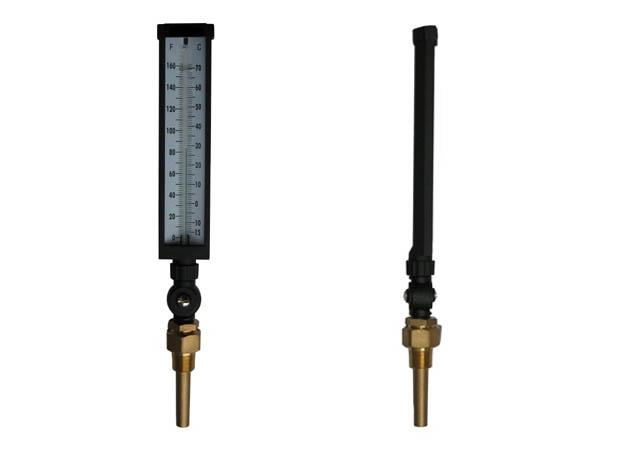

INDUSTRIAL GLASS THERMOMETER widely specified in the industrial and commercial plumbing trade, 9" (230mm) aluminum or thermoplastic case with a separable thermowell, vari-angle connection and a 360 degrees case rotation for easy installation. Used in plumbing, water lines, boilers, heating, air conditioning and ventilation.
Specifications
Dial
5"(155mm),9"(230mm)
Case
Black impact resistant thermoplastic / Aluminum
Liquid Filling
Organic Liquid / Blue / Red
Stem
3.5"(90mm), 6"(160mm)
Adjustment
Fully Adjustable
Connection
3/4" NPT with thermowell / 1 1/4"UNF swivel nut (no thermowell)
Range
-40-110F/C,0-120F/C,0-160F/C, 30-180F/C,30-240F/C,30-300F/C
Accuracy
±1.0%
Order Codes
|
F Range |
C Range |
||
|
Range Code |
Specific Range (F) |
Range Code |
Specific Range (C) |
|
F11 |
-40-110 |
C11 |
-40-40 |
|
F12 |
0-120 |
C12 |
-15-50 |
|
F13 |
0-160 |
C13 |
-15-70 |
|
F14 |
30-180 |
C14 |
0-80 |
|
F15 |
30-240 |
C15 |
0-115 |
|
F16 |
30-300 |
C16 |
0-150 |
