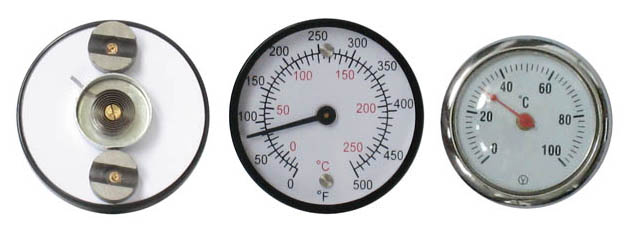

SURFACE MAGNET THERMOMETER provide a method to measuring the temperature on a flat metallic surface such as ductwork or motor housings.
Specifications
Dial
1" (25.4mm), 2"(50mm), 2.5"(63mm),
Case
Black Painted Steel, Chrome Plated Steel
Lens
Glass / Plexiglass
Accuracy
±2.0%
Range
0-250 F/C,0-500 F/C,50-750 F/C
Order Codes
|
F Range |
C Range |
||
|
Range Code |
Specific Range (F) |
Range Code |
Specific Range (C) |
|
F11 |
0-250 |
C11 |
-20-120 |
|
F12 |
0-500 |
C12 |
-15-260 |
|
F13 |
50-750 |
C13 |
10-400 |
