THERMOWELL

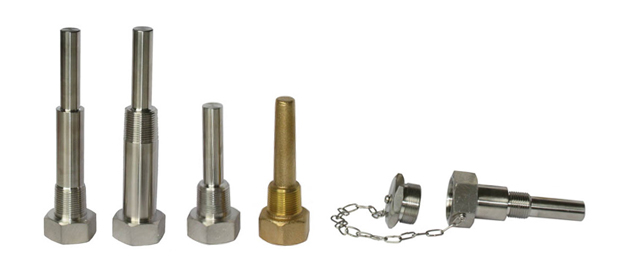

date sheet Industrial Thermowell

To set up a "sealed system", whereby the thermometer can be removed from the application. To protect the thermometer from possible exposure to the media. Used in HVAC, pipes, chill water and hot water lines.

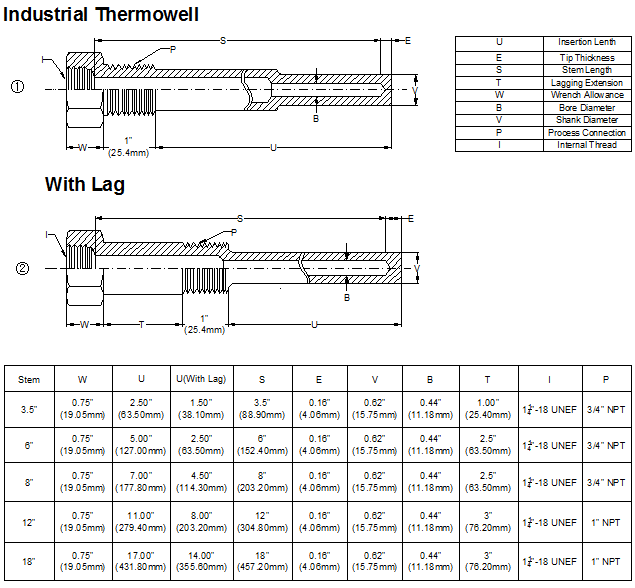

Specifications For INDUSTRIAL THERMOWELL


 Material  Brass, 304 Stainless stel or 316 stainless steel
 Thermometer connection  11/4" UNF
 Process Connection  3/4" NPT male standard
 Bore  7/16" tapered
 Construction

 Stepped construction standard, Tapered construction available upon request.
