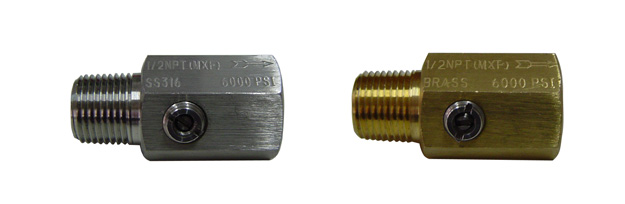

date sheet Adjustable Pressure Snubber

Body material can be brass, SS304 and SS316, adjustable system are SS316. Prolongs the life of pressure instruments by reduce the damage effects of pulsation. Can be utilized to change the amount of restriction. ADJUSTABLE PRESSURE SNUBBER can be used in pumps, compressors, hydraulic presses or fluid power Applications.


 Body  Stainless Steel 304, 316 or Brass
 Adjustable System  Stainless Steel 316
 Connection  1/4" or 1/2" NPT, Male x Female
 Temperature Rating  -30C to 200C
