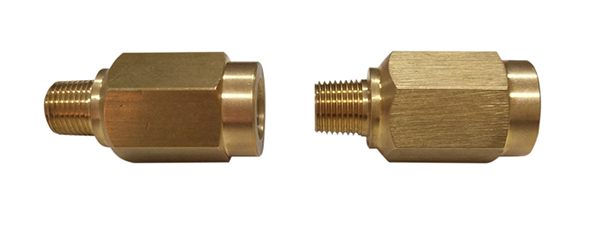

date sheet Piston Snubber

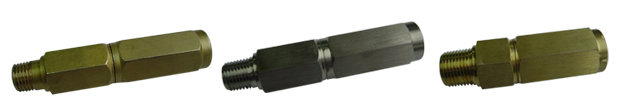

Piston snubber are supplied with three different pistons to use with a variety of media. Pressure gauge piston snubber will considerably increase the service life of pressure gauge in harsh application such as on reciprocating pumps and compressors, hydraulic pressure or fluid power systems and will addtionally improve the reading accuracy of the gauge.


 Body  Brass, SS304 and SS316

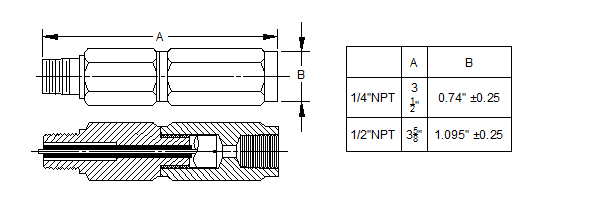

 connection  1/8"~1/4"~1/2" NPT, BSP or required threads size and type.
 Temperature Rating  14F to 248F (-10C to 120C)
