ACCESSORIES

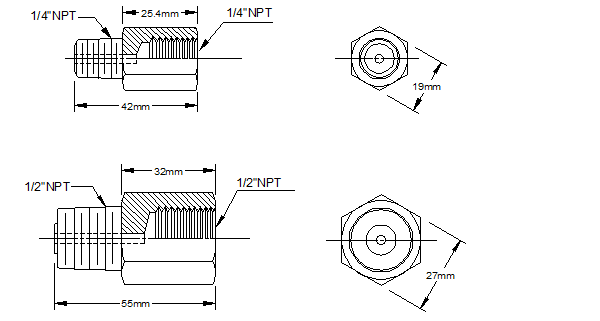

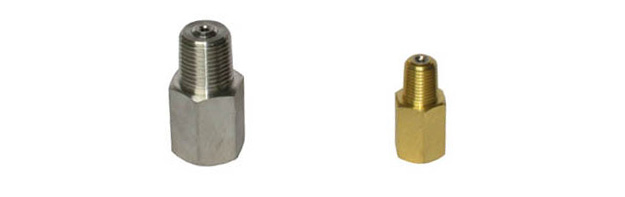

date sheet Snubber

To significantly less the damaging effects of pulsation on gauges, transducers and transmitters…

Specifications

 Housing  #316 stainless steel or Brass
 Snubbing Element  Sintered, Porous type #316 SS
 Snubbing Element Type  Heavy Oil, Water, Air
 Retainer  Stainless steel
 Operating Pressure  Maximum 20,000psi for SS, 10,000psi for Brass
 Burst Pressure  60,000psi for SS and 30,000psi for brass
 Operating Temperature  -195C to 800C for SS and -50C to 280C for Brass
