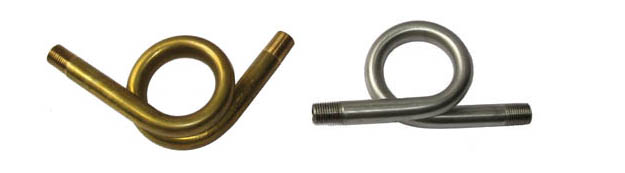

On steam service, the syphon will prevent hot steam from entering a pressure gauge, diaphragm seal or transmitter. Recommended for application involving temperatures above 100F (37C)

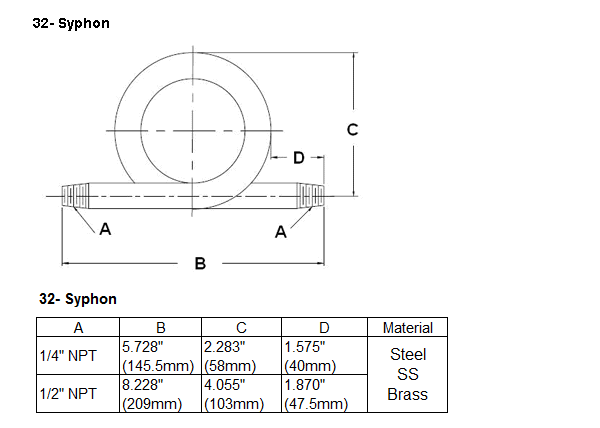

Specifications
Material
2mm or 4mm wall, steel/brass/SS coil
Style
90 degree,180 degree coil or request
Connection
1/4" NPT, 1/2" NPT or 1" NPT
