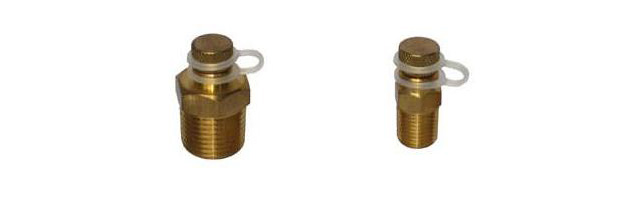

TEST PLUG is used for quick pressure and temperature test at recommended test point during process, used in heating, ventilation and air conditioning industries.
Specifications
Body
Brass
Diaphragm / Core
EPDM
Connection
1/4“ NPT or 1/2" NPT
Process Temperature
350F (176C)
Maximum Operation Pressure
1,000 psi (6895 kPa)
