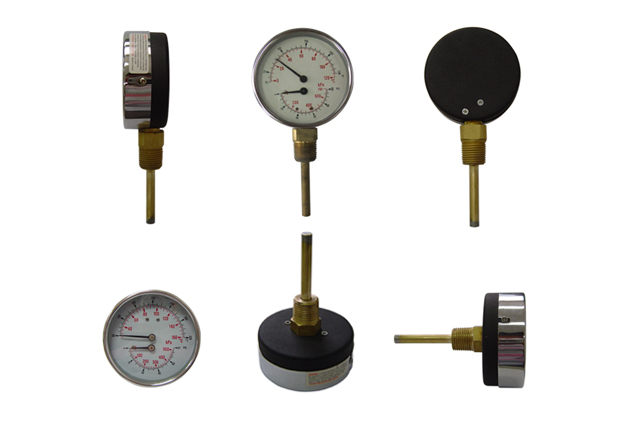

Jun Ying tridicator is designed for use on all types of hot water heating systems. One tridicator reads the water pressure and water temperature. Our tridicator include types are standard tridicator and all stainless steel tridicator, 2.5” dial and 3” dial, bottom and back connection. Used on heating system, plumbing, hot water and steam pressure for boilers. 2.5” tridicator, black steel case with screw on acrylic len, brass internals. 3” tridicator, black steel case with chrome plated ring, glass len, and brass internals. All stainless steel tridicator is for 2.5” dial, back connection only.



Specifications

	Dial	2.5"(63mm),3"(80mm)
	Case	304 Stainless Stee, Black Steel case and Chrome plated Ring
	Lens	Acrylic
	Stem	1" (25.4mm) or as per required.
	Connection	1/4"NPT Bottom or Back Connection,Brass or 304 stainless steel
	Accuracy	Pressure: ±3-2-3%,Temperature:±3%
	Range	0-75 PSI/KPA & 60-320 F/C,0-75 PSI/KPA & 30-240F/C
		0-200 PSI/KPA & 30-240F/C,0-100 PSI/KPA & 30-240F/C
		0-250 PSI/KPA & 60-240F/C

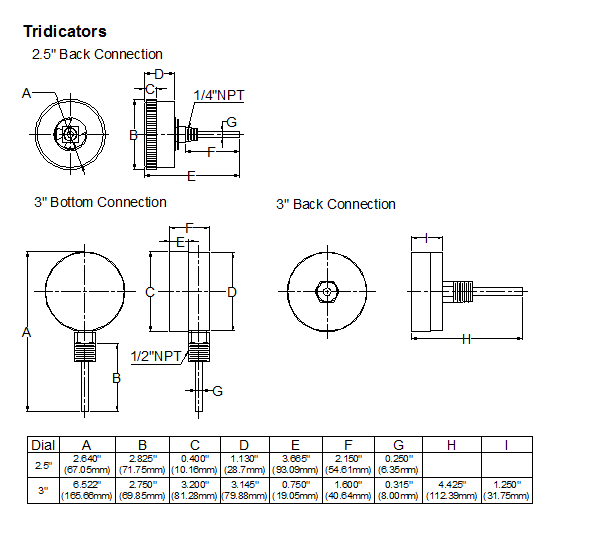

Order Codes
