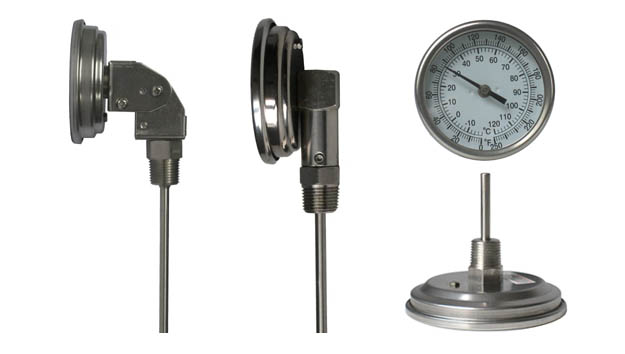

A general purpose, versatile 1" (25mm), 2" (50mm), 3" (75mm) to 6" (150mm) dial. All versions of our bimetal thermometers are hermetically sealed, Connection type can be back, bottom and angle available for optimum performance in most industrial applications. A recalibrate screw on back of the case for easy re-zero adjustable. Other type forms are available with or without a reset feature for a wider customer choice and Savings.
The whole case assembly is of Type 304/316 Stainless Steel, Aluminum or plated steel. To insure a moisture proof unit, the heavy glass face is securely gasket with the case And bezel assembly, hermetically sealed. Stem Assembly: The stem and fixed thread connection is fabricated of stainless steel. All welded construction insures complete corrosion resistance.
Specifications
![]() |
Dial | 1" (25mm), 2" (50mm), 3" (75mm), 4" (100mm), 5" (125mm), 6" (150mm), dish-shaped |
![]() |
Case | Stainless steel |
![]() |
Lens | Glass / Acrylic |
![]() |
Stem | From 2.5" (63mm) and up |
![]() |
Adjustment | Re-zero adjustment screws are available |
![]() |

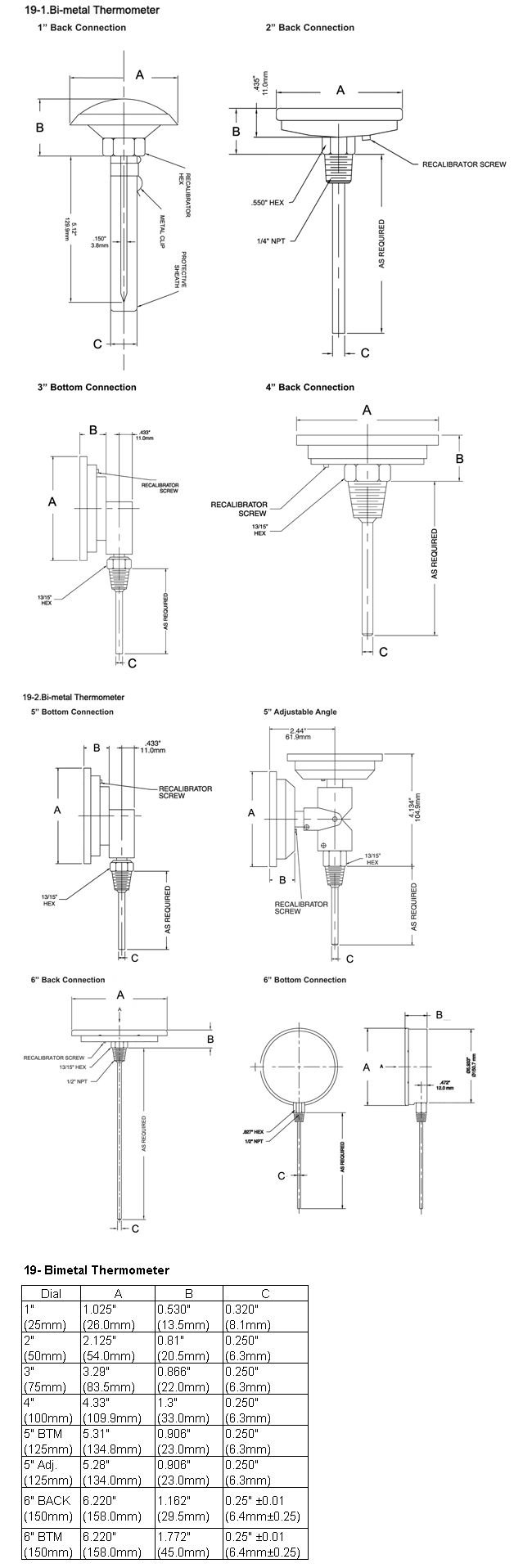

Connection | 1/4" or 1/2"NPT, back, bottom or adjustable angle connection |
![]() |
Range | -100-150F/C -- 200-1000F/C, -40/120F-- 200/1000F, -80/50C -- 100/550C |
![]() |
Accuracy | ±1.0% |
Order Codes
F Range |
C Range |
||
Range Code |
Specific Range (F) |
Range Code |
Specific Range (C) |
F11 |
-100-150 |
C11 |
-70-70 |
F12 |
-160 |
C12 |
-40-50 |
F13 |
0-140 |
C13 |
-20-60 |
F14 |
-40-160 |
C14 |
-40-70 |
F15 |
25-125 |
C15 |
-5-50 |
F16 |
0-200 |
C16 |
-20-90 |
F17 |
20-240 |
C17 |
-5-115 |
F18 |
0-250 |
C18 |
-20-120 |
F19 |
50-300 |
C19 |
10-150 |
F20 |
50-400 |
C20 |
10-200 |
F21 |
50-500 |
C21 |
10-260 |
F22 |
150-750 |
C22 |
100-40 |
F23 |
200-1000 |
C23 |
100-540 |
