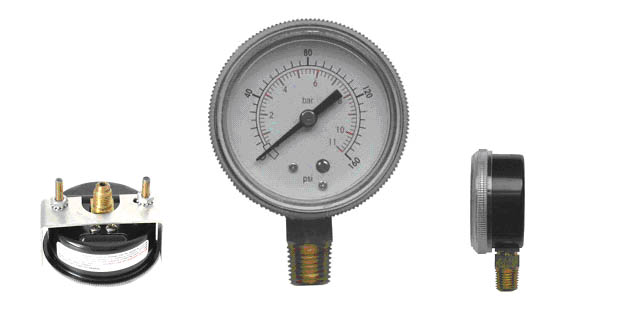

A general-purpose gauge that is pulsation resistant. Used in compressors, filters, regulators, water pumps, paint sprayers and a variety of other rapid pressure fluctuation applications.

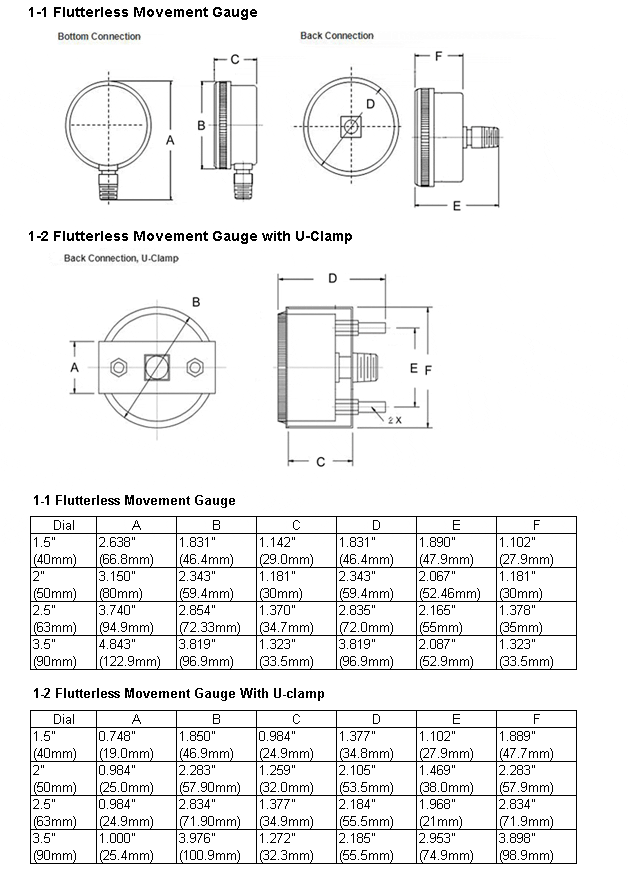

Specifications For FLUTTERLESS MOVEMENT GAUGE
Dial
1.5" (40mm), 2" (50mm), 2.5" (63mm), 3.5" (90mm)
Case
Black Plated Steel
Lens
Acrylic, screw on len
Movement
Brass, flutterless and zero adjustable
Internal
Brass
Connection
Brass, 1/8" or 1/4" NPT.Bottom/Back Connection, U-clamp available
Range
30"Hg.Vac./kpa -- 0-5000 Psi/Kpa
Accuracy
±2-1-2%
Order Codes
|
PSI Range |
|||||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
||
|
P11 |
30"Hg-0 |
5 |
0.2 |
||
|
P12 |
30"Hg-0-15 psi |
5/5 |
0.5/0.2 |
||
|
P13 |
30"Hg-0-30 psi |
10/5 |
1/0.5 |
||
|
P14 |
30"Hg-0-60 psi |
10/10 |
1/1 |
||
|
P15 |
30"Hg-0-100 psi |
30/10 |
2/1 |
||
|
P16 |
30"Hg-0-150 psi |
30/20 |
5/2 |
||
|
P17 |
30"Hg-0-300 psi |
30/50 |
5/2 |
||
|
P18 |
0-15 psi |
3 |
0.1 |
||
|
P19 |
0-30 psi |
5 |
0.2 |
||
|
P20 |
0-60 psi |
10 |
0.5 |
||
|
P21 |
0-100 psi |
10 |
1 |
||
|
P22 |
0-160 psi |
20 |
1 |
||
|
P23 |
0-200 psi |
20 |
2 |
||
|
P24 |
0-300 psi |
50 |
2 |
||
|
P25 |
0-400 psi |
50 |
5 |
||
|
P26 |
0-600 psi |
50 |
5 |
||
|
P27 |
0-1000 psi |
100 |
10 |
||
|
P28 |
0-1500 psi |
300 |
10 |
||
|
P29 |
0-2000 psi |
200 |
20 |
||
|
P30 |
0-3000 psi |
300 |
20 |
||
|
P31 |
0-5000 psi |
500 |
50 |
||
|
P32 |
0-10000 psi |
1000 |
100 |
||
|
P33 |
0-15000 psi |
2000 |
100 |
||
|
P34 |
0-20000 psi |
2000 |
200 |
||
|
KPA Range |
|||||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
||
|
K11 |
-100-0 kpa |
10 |
1 |
||
|
K12 |
-100-0-100 kpa |
20 |
2 |
||
|
K13 |
-100-0-200 kpa |
50 |
2 |
||
|
K14 |
-100-0-400 kpa |
50 |
5 |
||
|
K15 |
-100-0-600 kpa |
100 |
5 |
||
|
K16 |
-100-0-1000 kpa |
100 |
10 |
||
|
K17 |
-100-0-2000 kpa |
200 |
20 |
||
|
K18 |
0-100 kpa |
10 |
1 |
||
|
K19 |
0-200 kpa |
20 |
2 |
||
|
K20 |
0-400 kpa |
50 |
5 |
||
|
K21 |
0-700 kpa |
100 |
5 |
||
|
K22 |
0-1200 kpa |
200 |
10 |
||
|
K23 |
0-1500 kpa |
300 |
10 |
||
|
K24 |
0-2000 kpa |
200 |
20 |
||
|
K25 |
0-3000 kpa |
300 |
20 |
||
|
K26 |
0-4000 kpa |
500 |
50 |
||
|
K27 |
0-7000 kpa |
1000 |
50 |
||
|
K28 |
0-10000 kpa |
1000 |
100 |
||
|
K29 |
0-14000 kpa |
2000 |
100 |
||
|
K30 |
0-20000 kpa |
2000 |
200 |
||
|
K31 |
0-35000 kpa |
5000 |
250 |
||
|
K32 |
0-60000 kpa |
10000 |
500 |
||
|
K33 |
0-100000 kpa |
20000 |
1000 |
||
|
K34 |
0-140000 kpa |
20000 |
1000 |
||
|
KG/CM2 Range |
|||||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
||
|
G11 |
76cm Hg-0 |
10 |
0.5 |
||
|
G12 |
76cm Hg-0-1 kg/cm2 |
20/0.2 |
1/0.2 |
||
|
G13 |
76cm Hg-0-2 kg/cm2 |
20/0.5 |
2/0.2 |
||
|
G14 |
76cm Hg-0-4 kg/cm2 |
25/0.5 |
5/0.5 |
||
|
G15 |
76cm Hg-0-7 kg/cm2 |
76/1 |
5/0.1 |
||
|
G16 |
76cm Hg-0-10 kg/cm2 |
76/1 |
15/0.1 |
||
|
G17 |
76cm Hg-0-21 kg/cm2 |
76/2 |
1/0.2 |
||
|
G18 |
0-1 kg/cm2 |
0.1 |
0.01 |
||
|
G19 |
0-2 kg/cm2 |
0.2 |
0.02 |
||
|
G20 |
0-4.2 kg/cm2 |
0.5 |
0.05 |
||
|
G21 |
0-7 kg/cm2 |
1 |
0.05 |
||
|
G22 |
0-11 kg/cm2 |
1 |
0.1 |
||
|
G23 |
0-14 kg/cm2 |
2 |
0.1 |
||
|
G24 |
0-21 kg/cm2 |
3 |
0.2 |
||
|
G25 |
0-28 kg/cm2 |
4 |
0.2 |
||
|
G26 |
0-42 kg/cm2 |
6 |
0.5 |
||
|
G27 |
0-70 kg/cm2 |
10 |
0.5 |
||
|
G28 |
0-100 kg/cm2 |
10 |
1 |
||
|
G29 |
0-140 kg/cm2 |
20 |
1 |
||
|
G30 |
0-210 kg/cm2 |
30 |
2 |
||
|
G31 |
0-350 kg/cm2 |
50 |
2 |
||
|
G32 |
0-700 kg/cm2 |
100 |
10 |
||
|
G33 |
0-1000 kg/cm2 |
100 |
10 |
||
|
G34 |
0-1400 kg/cm2 |
200 |
20 |
||
