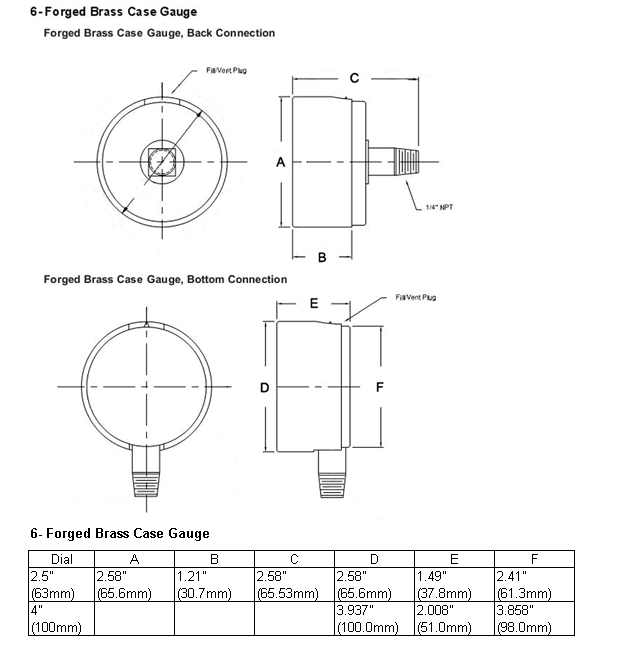

One piece forged brass case gauge, designed for severe service conditions, used in industrial and hydraulic systems.
Specifications For FORGED BRASS CASE GAUGE
 |
Dial | 2.5"(63mm),4"(100mm) |
|
Case | Forged brass case |
|
Lens | Polycarbonate |
|
Ring | 2.5"(63mm) Gold plated ABS, 4" (100mm）Polished Brass |
|
Internal | Brass |
|
Connection | 1/2" or 1/4" NPT |
|
Range | 30"Hg.Vacuum -- 0-100 PSI/KPA |
|
Accuracy | 2.5"(63mm) ±1.5%,4"(100mm) ±1% |
|
Liquid Filled | Glycerin |
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
P11 |
30"Hg to 0 |
5 |
0.2 |
|
P12 |
30"Hg to 15 psi |
5/5 |
0.5/0.2 |
|
P13 |
30"Hg to 30 psi |
10/5 |
1/0.5 |
|
P14 |
30"Hg to 60 psi |
10/10 |
1/1 |
|
P15 |
30"Hg to 100 psi |
30/10 |
2/1 |
|
P16 |
30"Hg to 150 psi |
30/20 |
5/2 |
|
P17 |
30"Hg to 300 psi |
30/50 |
5/2 |
|
P18 |
0 to 15 psi |
3 |
0.1 |
|
P19 |
0 to 30 psi |
5 |
0.2 |
|
P20 |
0 to 60 psi |
10 |
0.5 |
|
P21 |
0 to 100 psi |
10 |
1 |
|
P22 |
0 to 160 psi |
20 |
1 |
|
P23 |
0 to 200 psi |
20 |
2 |
|
P24 |
0 to 300 psi |
50 |
2 |
|
P25 |
0 to 400 psi |
50 |
5 |
|
P26 |
0 to 600 psi |
50 |
5 |
|
P27 |
0 to 1000 psi |
100 |
10 |
|
P28 |
0 to 1500 psi |
300 |
10 |
|
P29 |
0 to 2000 psi |
200 |
20 |
|
P30 |
0 to 3000 psi |
300 |
20 |
|
P31 |
0 to 5000 psi |
500 |
50 |
|
P32 |
0 to 10000 psi |
1000 |
100 |
|
KPA Range |
|||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
|
K11 |
-100 to 0 kpa |
10 |
1 |
|
K12 |
-100 to 100 kpa |
20 |
2 |
|
K13 |
-100 to 200 kpa |
50 |
2 |
|
K14 |
-100 to 400 kpa |
50 |
5 |
|
K15 |
-100 to 600 kpa |
100 |
5 |
|
K16 |
-100 to 1000 kpa |
100 |
10 |
|
K17 |
-100 to 2000 kpa |
200 |
20 |
|
K18 |
0 to 100 kpa |
10 |
1 |
|
K19 |
0 to 200 kpa |
20 |
2 |
|
K20 |
0 to 400 kpa |
50 |
5 |
|
K21 |
0 to 700 kpa |
100 |
5 |
|
K22 |
0 to 1200 kpa |
200 |
10 |
|
K23 |
0 to 1500 kpa |
300 |
10 |
|
K24 |
0 to 2000 kpa |
200 |
20 |
|
K25 |
0 to 3000 kpa |
300 |
20 |
|
K26 |
0 to 4000 kpa |
500 |
50 |
|
K27 |
0 to 7000 kpa |
1000 |
50 |
|
K28 |
0 to 10000 kpa |
1000 |
100 |
|
K29 |
0 to 14000 kpa |
2000 |
100 |
|
K30 |
0 to 20000 kpa |
2000 |
200 |
|
K31 |
0 to 35000 kpa |
5000 |
250 |
|
K32 |
0 to 60000 kpa |
10000 |
500 |
|
KG/CM2 Range |
|||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
|
G11 |
76cm Hg to 0 |
10 |
0.5 |
|
G12 |
76cm Hg to 1 kg/cm2 |
20/0.2 |
1/0.2 |
|
G13 |
76cm Hg to 2 kg/cm2 |
20/0.5 |
2/0.2 |
|
G14 |
76cm Hg to 4 kg/cm2 |
25/0.5 |
5/0.5 |
|
G15 |
76cm Hg to 7 kg/cm2 |
76/1 |
5/0.1 |
|
G16 |
76cm Hg to 10 kg/cm2 |
76/1 |
15/0.1 |
|
G17 |
76cm Hg to 21 kg/cm2 |
76/2 |
1/0.2 |
|
G18 |
0 to 1 kg/cm2 |
0.1 |
0.01 |
|
G19 |
0 to 2 kg/cm2 |
0.2 |
0.02 |
|
G20 |
0 to 4.2 kg/cm2 |
0.5 |
0.05 |
|
G21 |
0 to 7 kg/cm2 |
1 |
0.05 |
|
G22 |
0 to 11 kg/cm2 |
1 |
0.1 |
|
G23 |
0 to 14 kg/cm2 |
2 |
0.1 |
|
G24 |
0 to 21 kg/cm2 |
3 |
0.2 |
|
G25 |
0 to 28 kg/cm2 |
4 |
0.2 |
|
G26 |
0 to 42 kg/cm2 |
6 |
0.5 |
|
G27 |
0 to 70 kg/cm2 |
10 |
0.5 |
|
G28 |
0 to 100 kg/cm2 |
10 |
1 |
|
G29 |
0 to 140 kg/cm2 |
20 |
1 |
|
G30 |
0 to 210 kg/cm2 |
30 |
2 |
|
G31 |
0 to 350 kg/cm2 |
50 |
2 |
|
G32 |
0 to 700 kg/cm2 |
100 |
10 |
