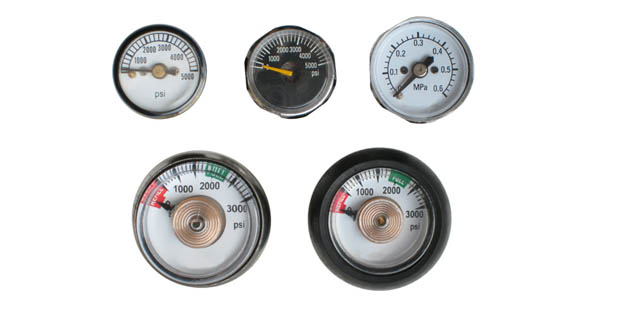

Spiral Tube Gauge, Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers.

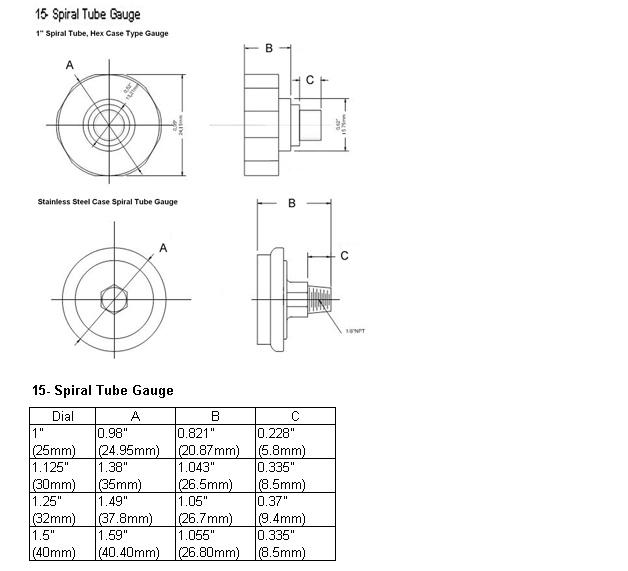

Specifications For SPIRAL TUBE GAUGE
Dial
1"(25mm),1.15"(30mm),1.25"(32mm),1.5"(40mm)
Case
1"(25mm) Nickel plated brass / others stainless steel
Lens
Polycarbonate
Spiral Tube
Brass / Beryllium copper / stainless steel
Socket
Brass / Stainless steel
Connection
1/8" NPT
Range
0-60 PSI -- 0-5000 PSI
Accuracy
±3-2-3%
Order Codes
|
PSI Range |
|||
|
Range Code |
Specific Range (psi) |
Figure Internals |
Minor Divisions |
|
P20 |
0-60 psi |
10 |
0.5 |
|
P21 |
0-100 psi |
10 |
1 |
|
P22 |
0-160 psi |
20 |
1 |
|
P23 |
0-200 psi |
20 |
2 |
|
P24 |
0-300 psi |
50 |
2 |
|
P25 |
0-400 psi |
50 |
5 |
|
P26 |
0-600 psi |
50 |
5 |
|
P27 |
0-1000 psi |
100 |
10 |
|
P28 |
0-1500 psi |
300 |
10 |
|
P29 |
0-2000 psi |
200 |
20 |
|
P30 |
0-3000 psi |
300 |
20 |
|
P31 |
0-5000 psi |
500 |
50 |
|
KPA Range |
|||
|
Range Code |
Specific Range (kpa) |
Figure Internals |
Minor Divisions |
|
K20 |
0-400 kpa |
50 |
5 |
|
K21 |
0-700 kpa |
100 |
5 |
|
K22 |
0-1200 kpa |
200 |
10 |
|
K23 |
0-1500 kpa |
300 |
10 |
|
K24 |
0-2000 kpa |
200 |
20 |
|
K25 |
0-3000 kpa |
300 |
20 |
|
K26 |
0-4000 kpa |
500 |
50 |
|
K27 |
0-7000 kpa |
1000 |
50 |
|
K28 |
0-10000 kpa |
1000 |
100 |
|
K29 |
0-14000 kpa |
2000 |
100 |
|
K30 |
0-20000 kpa |
2000 |
200 |
|
K31 |
0-35000 kpa |
5000 |
250 |
|
KG/CM2 Range |
|||
|
Range Code |
Specific Range (kg) |
Figure Internals |
Minor Divisions |
|
G20 |
0-4.2 kg/cm2 |
0.5 |
0.05 |
|
G21 |
0-7 kg/cm2 |
1 |
0.05 |
|
G22 |
0-11 kg/cm2 |
1 |
0.1 |
|
G23 |
0-14 kg/cm2 |
2 |
0.1 |
|
G24 |
0-21 kg/cm2 |
3 |
0.2 |
|
G25 |
0-28 kg/cm2 |
4 |
0.2 |
|
G26 |
0-42 kg/cm2 |
6 |
0.5 |
|
G27 |
0-70 kg/cm2 |
10 |
0.5 |
|
G28 |
0-100 kg/cm2 |
10 |
1 |
|
G29 |
0-140 kg/cm2 |
20 |
1 |
|
G30 |
0-210 kg/cm2 |
30 |
2 |
|
G31 |
0-350 kg/cm2 |
50 |
2 |
