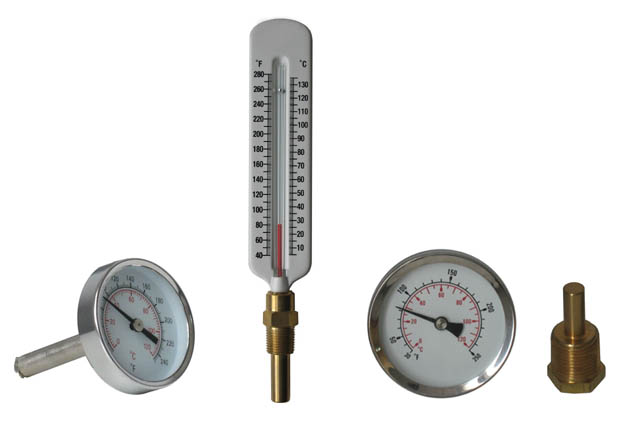

HOT WATER THERMOMETER is an accurate way to measure air or water temperatures. Used in hot water lines, boilers and hydronic heating.
Specifications
Hot Warter Thermometer
Dial
8"(200mm)
Case
Steel painted white with black marking
Liquid Filling
Kerosene,Red
Range
40-280F & 5-135C
Tube
Glass
Stem
Brass
Connection
1/2" NPT, Straight and Angle available
Accuracy
±1.0%
Hot Water Bimetal Thermometer
Dial
2.5" (63mm)
Case
Zinc plated steel
Ring
Chrome plated steel
Len
Glass
Element
Bi-metal
Stem
Brass
Socket
Brass, 1/2"NPT,Separable
Range
30-250F & 0-120C
Recalibrator
Available
Accuracy
±2.0%
Order Codes
|
F Range |
C Range |
||
|
Range Code |
Specific Range (F) |
Range Code |
Specific Range (C) |
|
F11 |
30-250 |
C11 |
0-120 |
|
F12 |
40-280 |
C12 |
5-135 |
