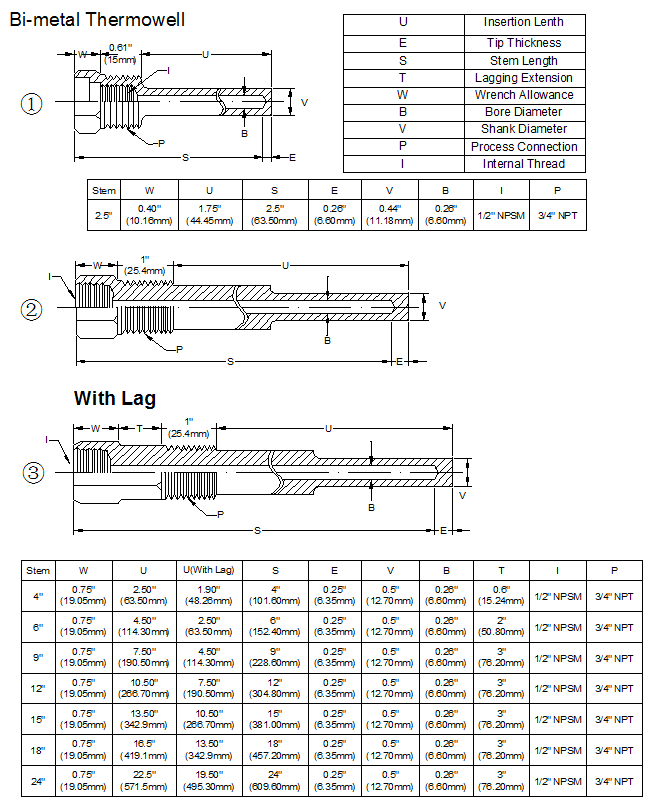

date sheet Bi-metal Thermowell

BI-METAL THERMOWELL is to set up a "sealed system", whereby the thermometer can be removed from the application. To protect the thermometer from possible exposure to the media.


 Material  Brass, Carbon Steel, 304 Stainless stel or 316 stainless steel
 Thermometer connection  1/2"NPT female connection standard, other thread size are available upon request
 Process Connection  3/4“,1/2”,1" or other threads size are available
 Bore  0.260"(6.5mm) bore standard
 Construction  Stepped construction standard, Tapered construction available upon request.
