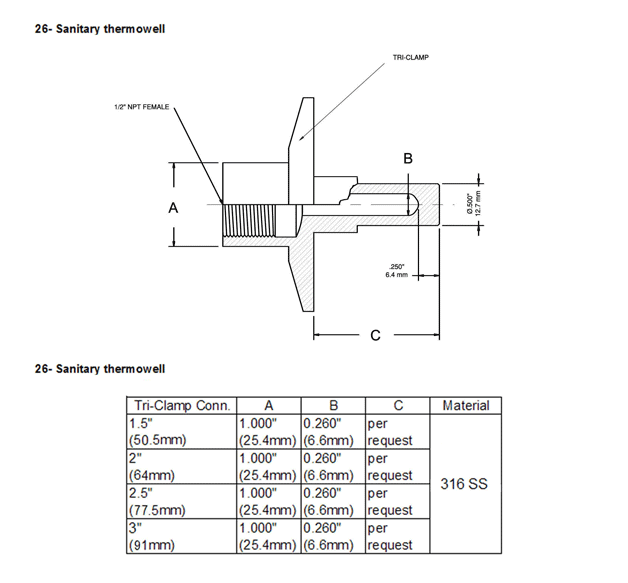

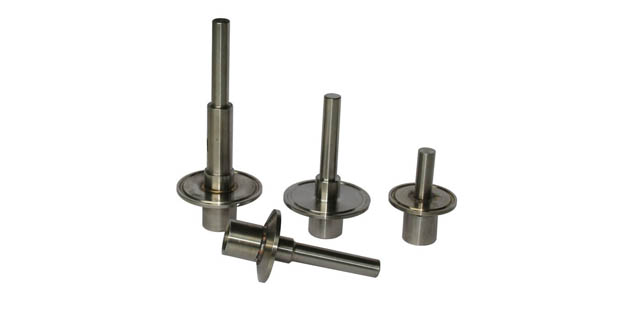

date sheet Sanitary Thermowell

SANITARY THERMOWELL to set up a "sealed system", whereby the thermometer can be removed from the application. To protect the thermometer from possible exposure to the media. Designed specifically for sanitary requirements of the food and dairy industry.


 Material  316 stainless steel
 Thermometer connection  1/2" NPT
 Connection  1.5",2",2.5"&3" Tri-Clamp
 Bore  0.260"(6.5mm) bore standard
 Stem  Lengths of stem are available upon request
